DotMod DotBox V2 Box Mod Review
The DotMod DotBox V2 is a dual 18650 box mod aimed at vapers who want a compact, traditional mod with a modern chipset. It combines familiar DotMod styling with a menu-driven interface and enough power for subohm builds while retaining options for mouth-to-lung setups.
DotMod DotBox V2 Design and build

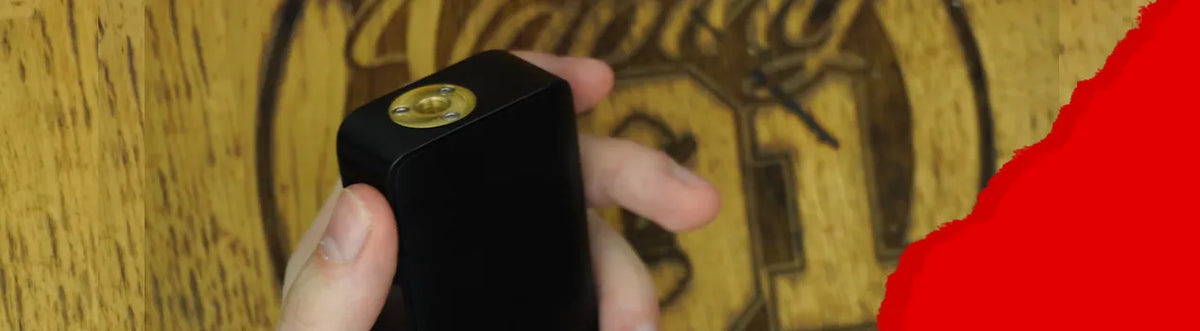

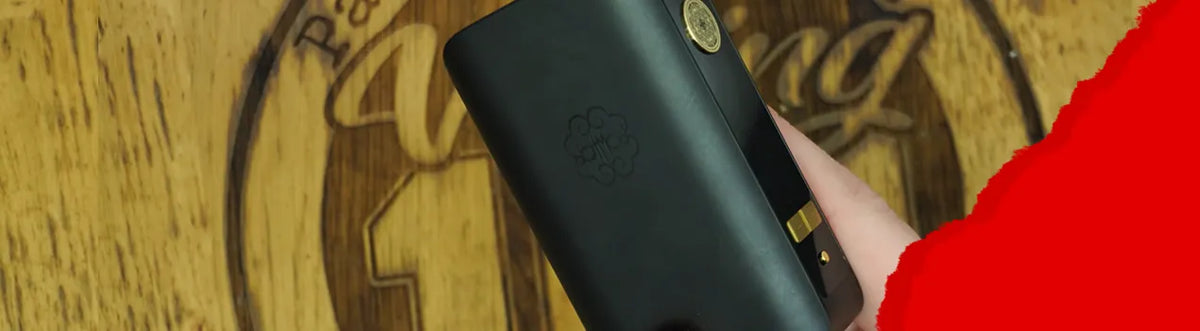

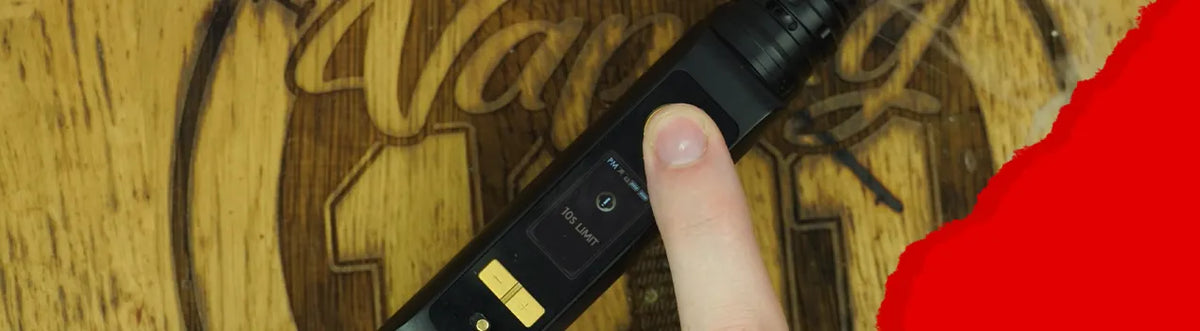

The DotBox V2 follows a thin, tall box-mod form factor. It has a clear firing button, up and down buttons, and a dedicated lock button on the side. The DotMod logo is present on the chassis and the 510 plate sits centred on top with a sprung firing pin.

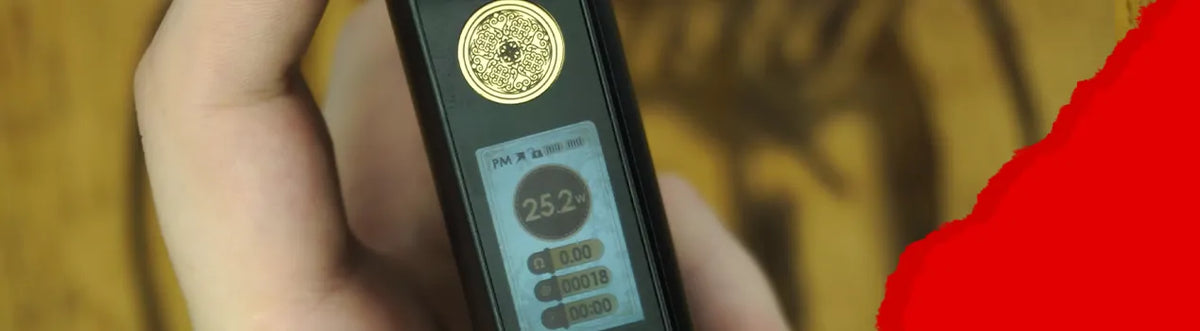

USB Type-C charging is provided on the bottom alongside two small rubber feet to keep the mod stable when upright. The device uses external 18650 cells rather than internal batteries, and it has a readable colour display that is brighter in person than most camera footage suggests.
Practical notes on size and compatibility
- The mod is designed for tanks up to 25 mm without overhang. DotMod ships a 25 mm Tank Max 2 with kit versions.
- 24 mm atomisers and RDAs are compatible but will show a small edge around the base when fitted.
- The thin, tall shape can affect balance with larger tanks, a common trait among small-form-factor box mods. The unit is ambidextrous in use and feels solid in the hand.

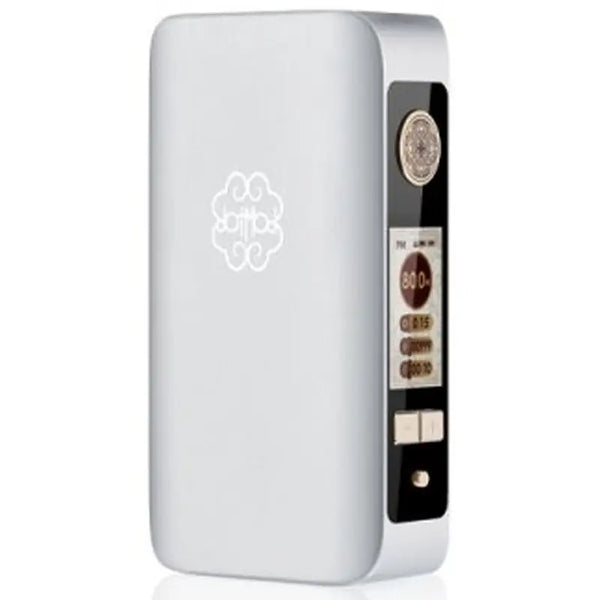

dotMod dotBox 220 V2 Mod
A compact dual-18650 box mod with a modern chipset, full wattage mode options, boost and curve functionality, and a centred 510 connection for tanks up to 25 mm.
Best for
- External battery users
- MTL and sub-ohm setups
- Traditional box mod fans
DotMod DotBox V2 Battery and charging
- Battery type: dual 18650 (user installed)
- Charging: USB Type-C onboard charging present
- Recommended charging: while USB-C is available, external charging with a dedicated charger is recommended to preserve battery and device longevity.
- Full-charge voltage reported: 4.15 V

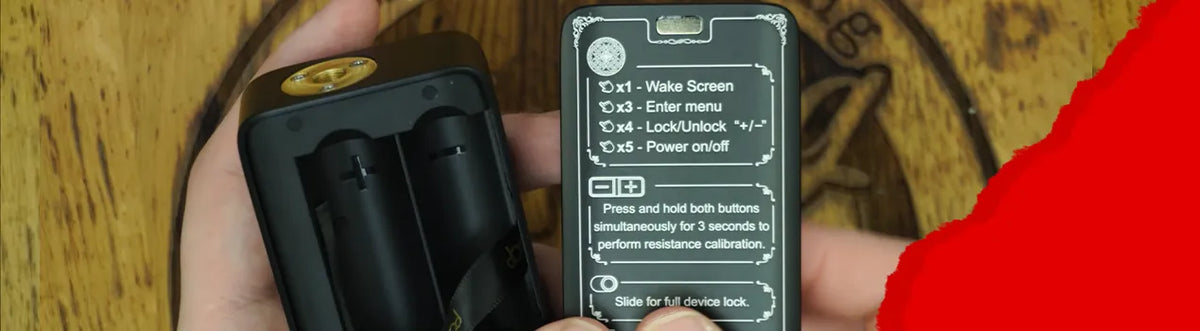

Using the batteries is straightforward: use the ribbon to position the cells, insert positive and negative ends as marked, then repeat for the second cell.
Chipset, modes and menus
Access the menu with three quick clicks of the fire button. Use the up and down buttons to navigate. Available modes include:
- Power (wattage) mode
- Bypass mode
- Temperature control: Nickel, Titanium, Stainless Steel
- Curve mode for custom power curves
- Boost mode to add a user-defined extra power burst on fire
Curve mode allows you to program a custom power delivery profile. It offers granular control but can take time to set up, so it will suit users who like to fine tune their vape.
Boost mode can be turned on or off and its amount adjusted numerically. It adds extra power for the initial part of the inhale to help ramp-up on certain builds.
Wattage adjustment behaviour
The DotBox V2 offers finer wattage steps under 30 W for precise low-power tuning. Above 30 W the increments widen and the device will adjust up to its maximum output. The wattage range wraps, cycling from the top end back down to the minimum.

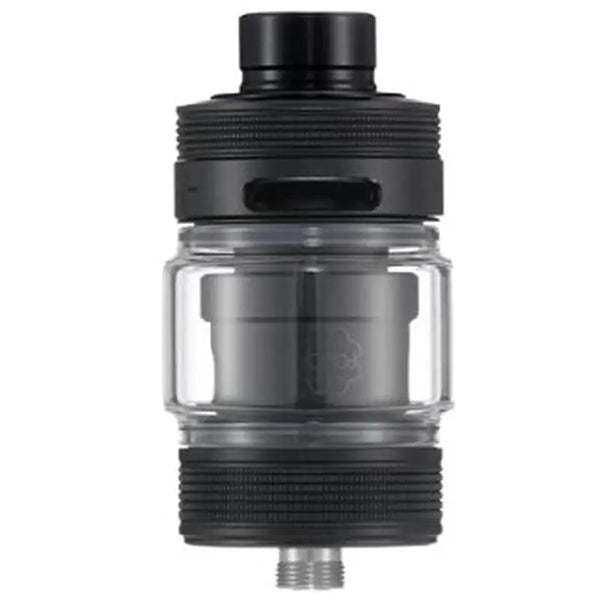

dotMod dotTank Max Ultra Light V2
The Dot Tank Max is the natural companion for users who want a matching DotMod tank for the DotBox V2, especially if you prefer a clean 25 mm fit without overhang.
Best for
- Matching the mod
- 25mm fit
- Sub-ohm setups
It makes the most sense for vapers who want a matched DotMod setup rather than pairing the mod with a third-party tank.
DotMod DotBox V2 Performance and limits
Key chipset details:
- Minimum resistance reading: 0.08 ohm
- Maximum resistance reading: 3.0 ohm
- Wattage range: 5 W to 220 W
- Working temperature range: -20 to +80 degrees Celsius
- 10-second cutoff on firing to prevent prolonged activation
The device includes protections for low or high resistance, short circuits and a 10-second auto cutout for safety. If a coil resistance is outside the chipset limits, the device will display an error for high or low resistance.
Real-world performance
The chipset performs well across both MTL and subohm setups. Fine wattage control under 30 W makes it suitable for mouth-to-lung tanks, and boost mode helps bridge the initial ramp with heavier subohm coils. On heavier RDAs and tanks the mod delivers consistent power up to 220 W.
A note on thermals: high-power builds can make atomisers get hot quickly. The 10-second cutoff and short-circuit protection are useful safety features to prevent prolonged overheating.
18650 Batteries
The DotBox V2 uses dual external 18650 batteries, so a matched pair of quality cells is essential for performance and battery safety.
Best for
- Powering the mod
- Battery rotation
- Safe daily use
A must-have if you are buying the box mod on its own and need the correct batteries to run it.

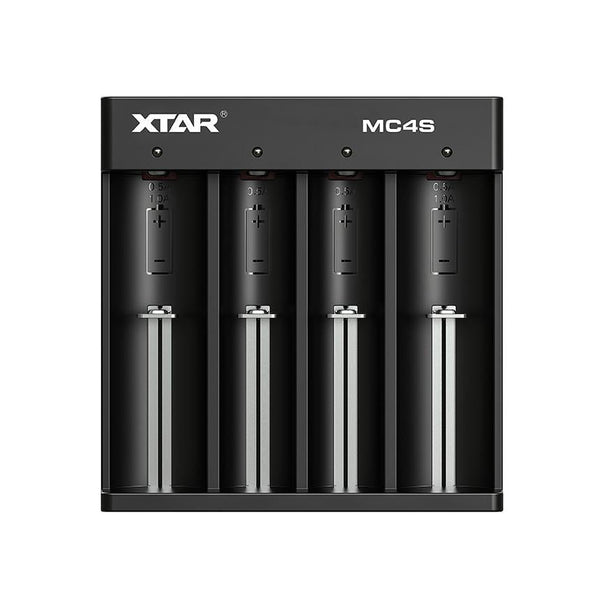

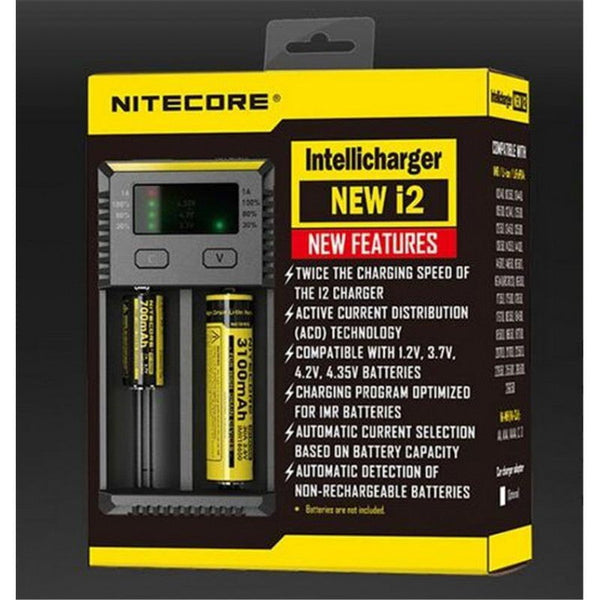

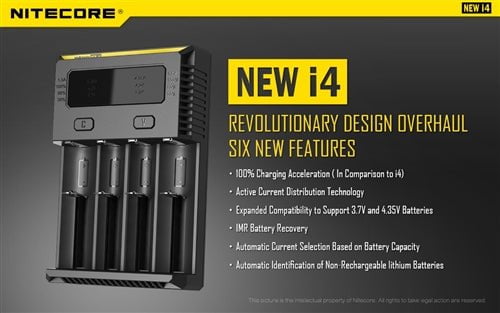

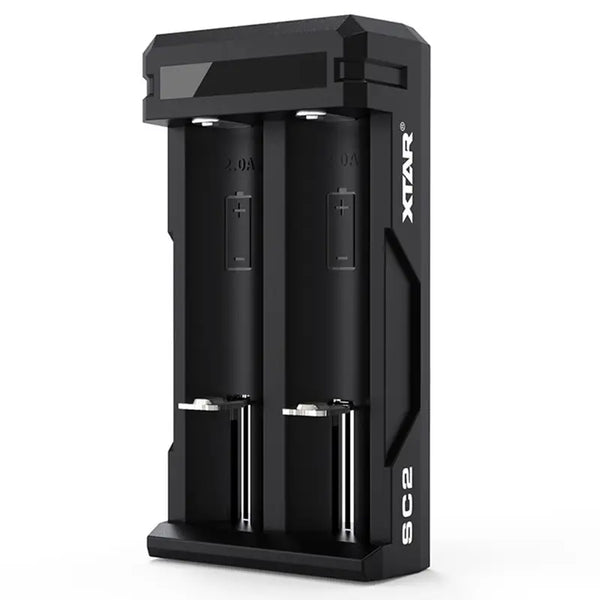

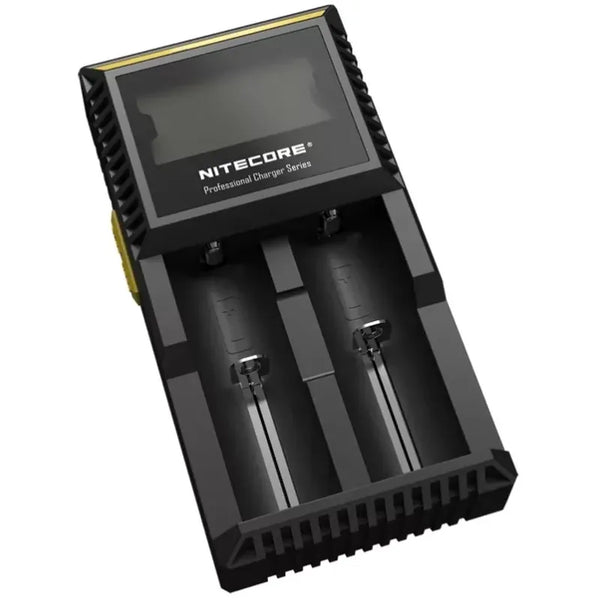

18650 Battery Chargers
While the DotBox V2 includes USB-C charging, a dedicated external charger is still the better long-term option for dual-18650 users who want to look after their cells properly.
Best for
- Charging removable cells
- Extending battery life
- Daily dual-battery use
Safety features
- 10-second firing limit
- Low and high resistance warnings
- Short-circuit protection
- Standard temperature control options across Nickel, Titanium and Stainless Steel
These safeguards are in line with contemporary box-mod expectations and help mitigate common risks from improper builds or faulty coils.
Who this is for
- Vapers who prefer an external-battery box mod rather than internal cells
- Users who want both MTL and subohm capability in a compact package
- Experienced vapers who appreciate a menu system with curve and boost functions
The DotBox V2 is not a niche single-purpose device. Its blend of fine low-watt tuning and high maximum output makes it flexible across a range of atomisers.
dotMod
Browse the wider DotMod range if you want matching tanks, mods, and accessories that keep the same design language as the DotBox V2.
Best for
- Matching hardware
- DotMod fans
- Complete setups
DotMod DotBox V2 pros and cons
Pros
- Dual 18650 cells for easy battery swaps
- Wide mode selection including precise low-watt control and boost
- Solid build, comfortable in the hand and ambidextrous
- Supports 25 mm tanks flush; kit includes DotMod Tank Max 2
- Good safety feature set
Cons
- Thin, tall form factor can make balance awkward with large tanks
- Onboard USB-C charging is convenient but external charging is recommended to protect cells
- Curve mode requires patience to set up correctly
Our thoughts on the DotMod DotBox V2
The DotMod DotBox V2 is a sensible, mainstream dual 18650 box mod that blends accurate chipset behaviour with DotMod styling. It suits vapers who want both precise low-watt control for MTL and power for subohm builds. The menu system and boost options add flexibility, while the device retains standard safety protections. For anyone who prefers external removable batteries and a traditional mod experience, the DotBox V2 is a capable option.
Quick Comparison
| Product | Type | Battery | Power / Fit | Best for | Price |
|---|---|---|---|---|---|
| dotMod dotBox 220 V2 Mod | Box Mod | Dual 18650 | 5-220W / Up to 25mm | MTL and sub-ohm flexibility | |
| dotMod dotTank Max Ultra Light V2 | Tank | — | 25mm | Matching DotMod sub-ohm setup | |
| 18650 Batteries | Battery | External Cells | 2 Required | Powering the mod safely | |
| 18650 Battery Chargers | Charger | 18650 Cells | External Charging | Battery care and longevity |
Verdict
The DotBox V2 gets the basics right: removable batteries, a centred 510, flexible output modes, and good low-watt control for users who do not only vape at high power. It keeps the traditional dual-battery mod format alive while still offering enough modern chipset features to satisfy advanced users.
If you want a compact external-battery mod with DotMod styling and broad compatibility across MTL and sub-ohm tanks, this is a strong option.
