Geek Vape Aegis Mini 5 Kit Review

Overview

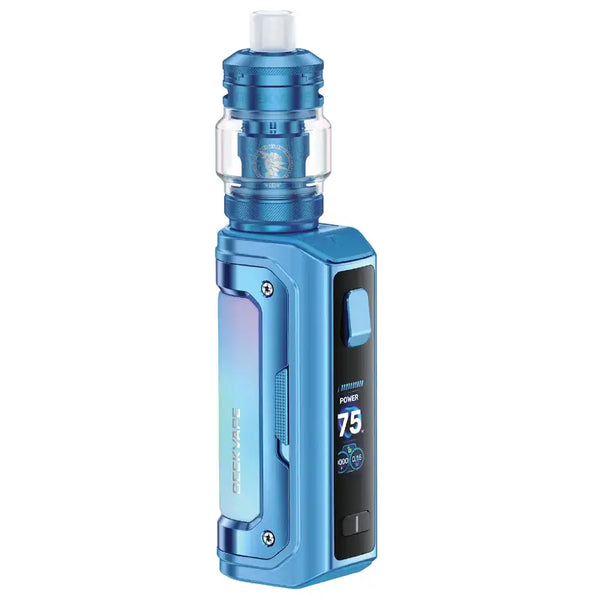

The Geek Vape Aegis Mini 5 is a compact internal-battery box mod paired with Geek Vape's new Z Nano 3 tank. It keeps the Aegis family hallmarks of ruggedness and waterproofing while simplifying the user interface. The kit is aimed at vapers who want a reliable daily driver for restricted direct lung and variable direct lung vaping with an easy, no-fuss setup.

Key specifications

• Internal battery: 3,200 mAh
• Output: up to 100 W (power and smart modes only)
• Charging: USB Type-C fast charging (cable not included)
• Waterproof rating: IP67
• Display: colour screen with a removable screen protector
• Dimensions (with tank): height 138.2 mm; width 38-39 mm; depth 28.6 mm
• Tank: Geek Vape Z Nano 3, uses B series Boost coils

Design and build

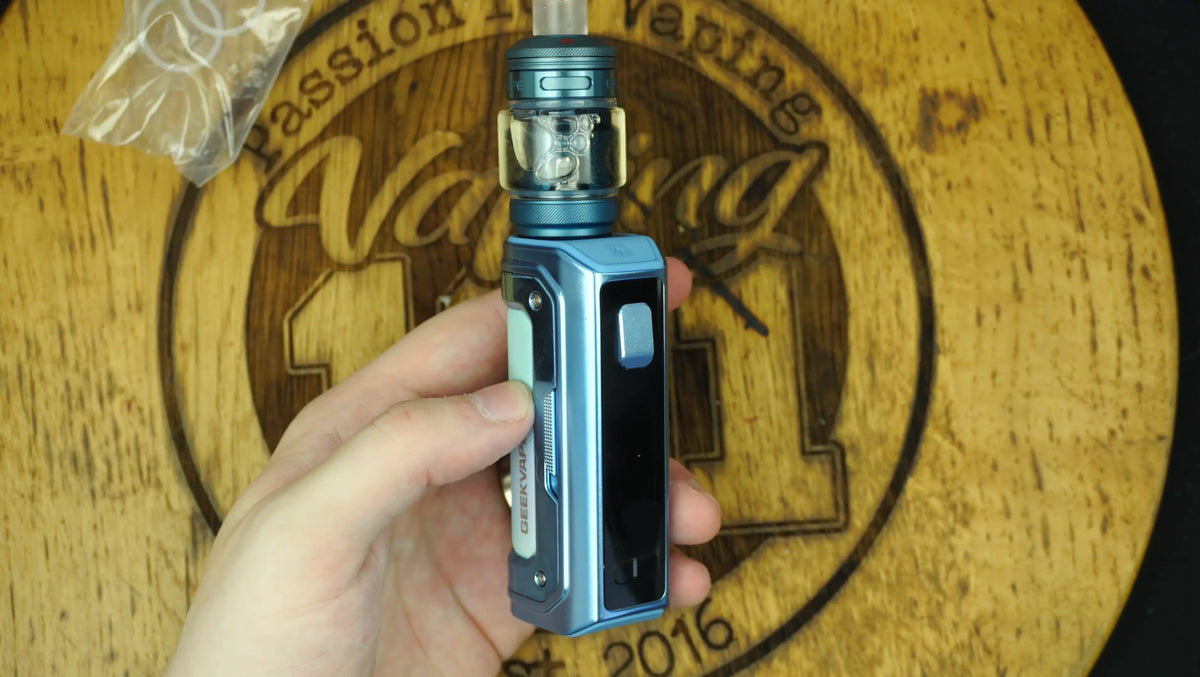

The Mini 5 follows the classic Aegis aesthetic in a smaller, handheld package. Controls are pared back to the essentials. A side lock system secures the device and prevents accidental changes. The colour screen includes adjustable colour options and a vaping animation that can be switched off.

The mod feels solid and functional. It is waterproof to IP67 standards, and the side lock is familiar and straightforward, avoiding complex touch or grip gimmicks. The front houses a USB Type-C port for charging; the kit does not include a USB cable.

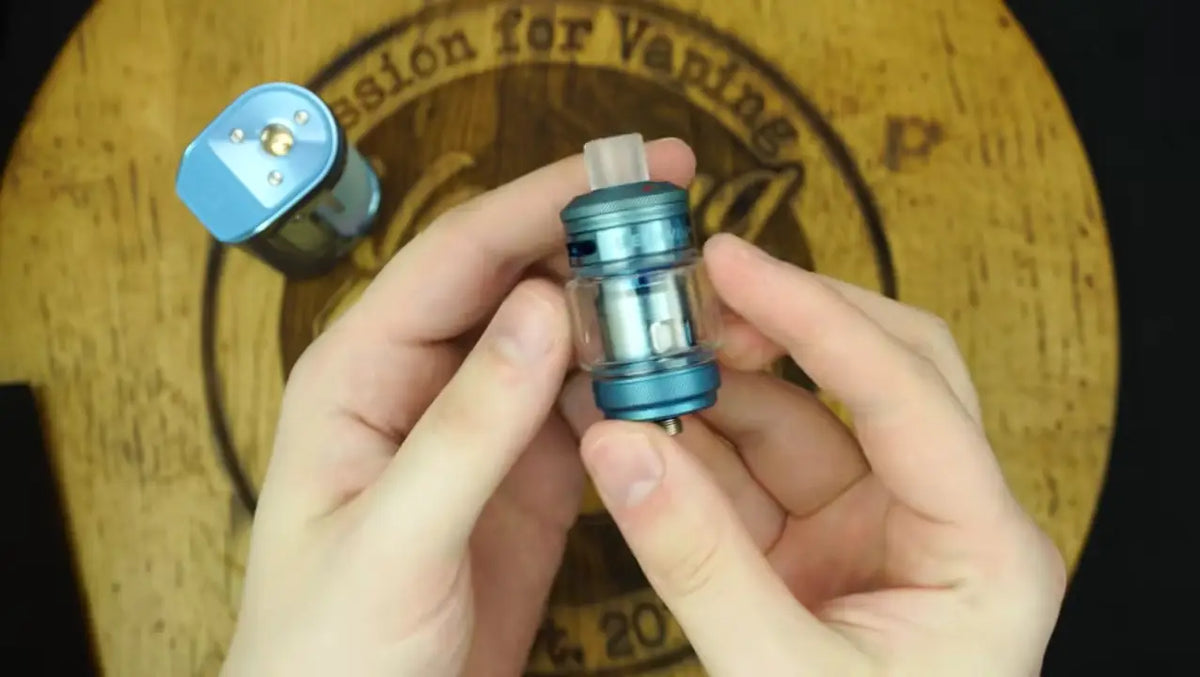

Z Nano 3 tank: layout and coil compatibility

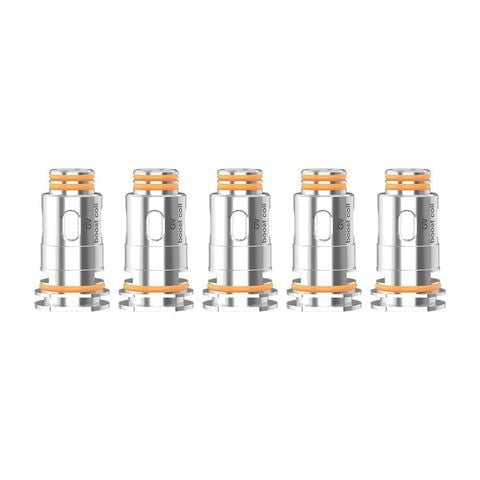

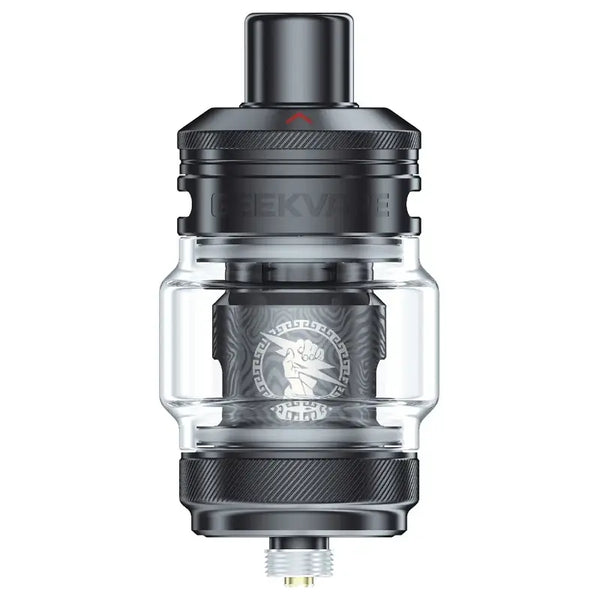

The included Z Nano 3 tank uses push-fit Boost style coils from Geek Vape's B series Boost family. This means coil supply should be widely available among other Boost coil devices. The tank is top-airflow with a characteristic top-air whistle. It accepts 510 drip tips only, not 810.

The kit comes with two drip tips that are slightly different sizes. The narrower option can help with mouth to lung or higher PG mixes, while the wider tip is better suited to sub-ohm, higher VG setups.

Coils included and recommended power

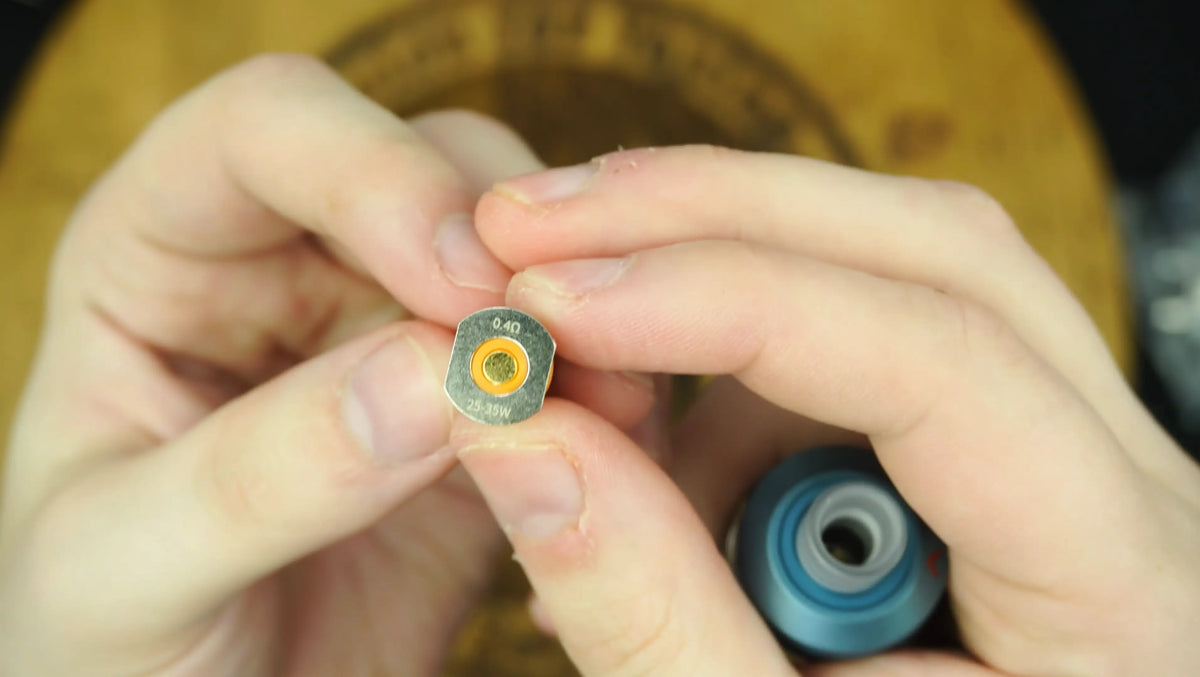

The box includes two coils. The resistance markings and on-screen readings align with the following setup:

• 0.4 ohm coil: recommended around 25-35 W
• 0.2 ohm coil: recommended around 50 W

When you screw the tank on the mod it automatically reads the installed coil resistance and will suggest an appropriate wattage. The device also offers a Smart mode which will alert or limit power if the selected wattage exceeds the coil's recommended range.

Filling, wicking and coil change

Filling

• Open the top fill port; it uses a rubber sealed flap to reduce leakage.
• Close the airflow while filling to minimise spills.
• Wipe any excess e-liquid from the tank before reassembling.

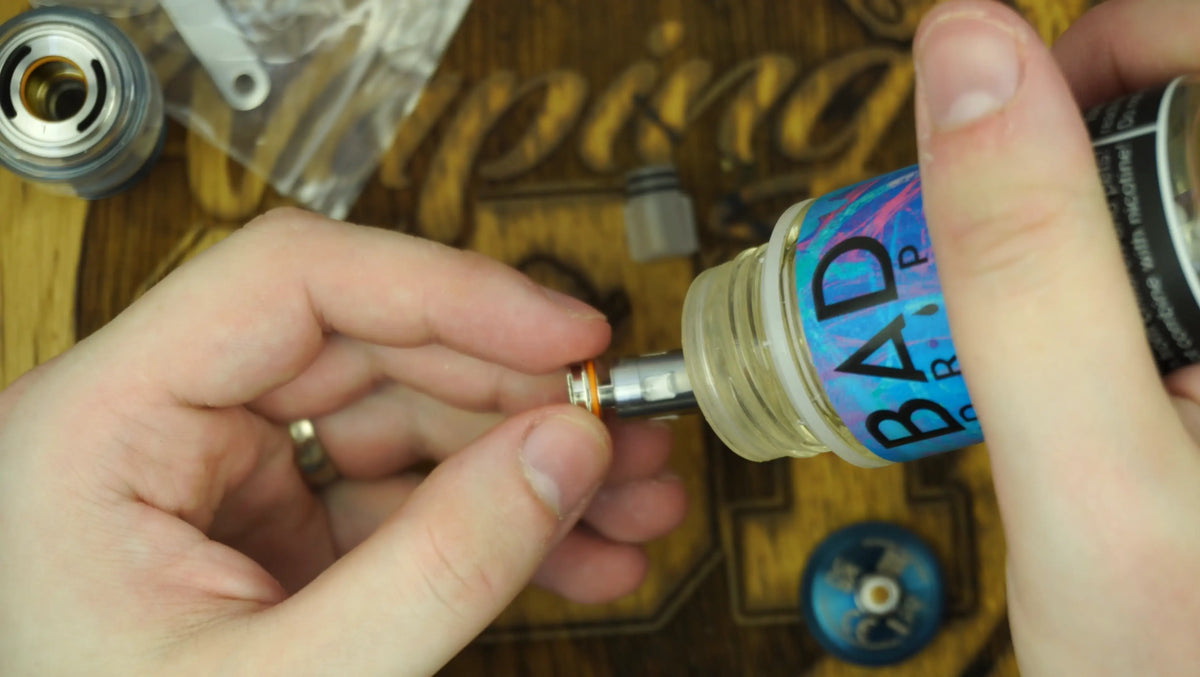

Wicking a new coil

• Before first use saturate each side of the coil's cotton with e-liquid. This applies to any coil type and prevents dry hits on first fires.
• Push the coil into the base until it seals. The kit includes a small tool designed to ease coil removal and installation. It is useful but small and easy to misplace.

Removing and replacing glass

The removable glass takes a sliding/twisting action. A spare glass is included in the kit in case of damage.

User interface and modes

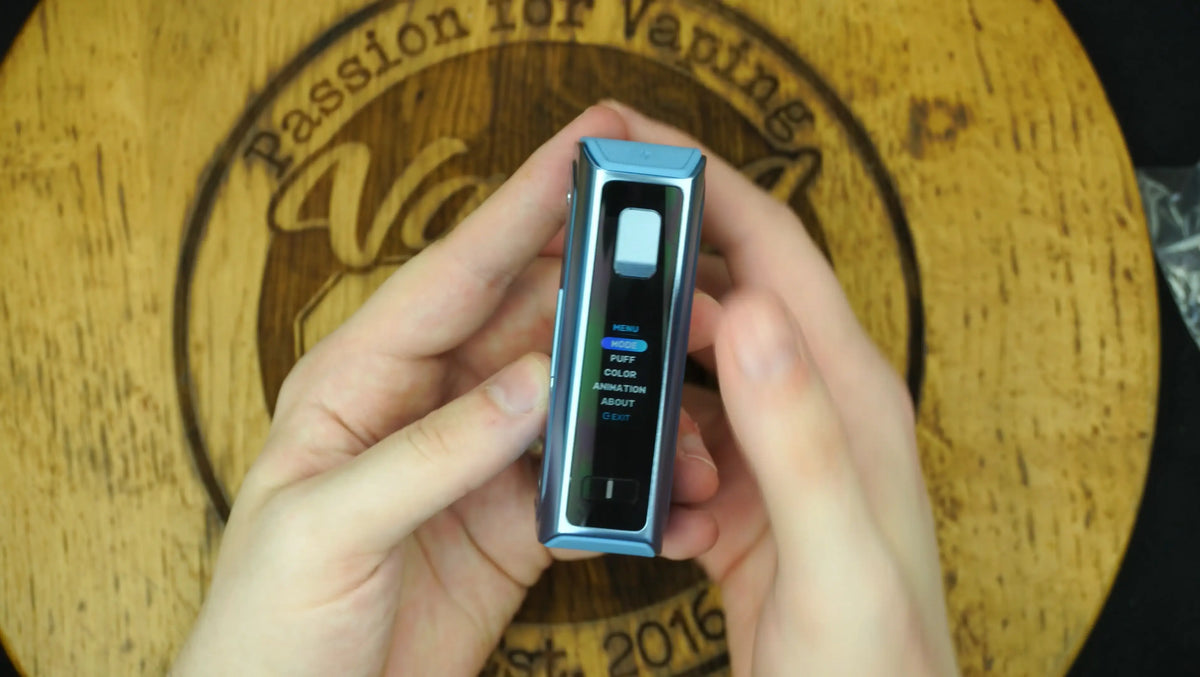

The Mini 5 keeps the menu simple: Power and Smart modes only. There is no temperature control. Menu items include puff counter reset, colour selection, vaping animation on/off, and an About screen showing firmware and device info.

Power adjusts in 1 W increments up to 100 W. Locking works via the side lock system; an additional button combination can lock the fire buttons while leaving wattage unchanged.

Performance and day to day use

The kit performs as a compact, versatile daily device. The internal 3,200 mAh battery is suitable for a day of moderate use for many vapers. The mod reads coils automatically and the Smart mode helps avoid overpowering coils. The tank produces the expected restricted direct lung character and works across mouth to lung and direct lung styles depending on coil and drip tip choice.

My notes from regular use

• Top airflow gives a bit of audible top-air whistle. That is common with this layout and does not indicate a fault.
• The rubber top fill seal is effective at reducing leakage but can leave a small amount of liquid on the top cap during filling. Wiping after filling keeps things tidy.
• The provided coil tool is a handy addition because these push-fit coils can be awkward to grip and remove by hand.

Pros and cons

Pros

• Rugged Aegis build with IP67 waterproofing
• Compact, handheld size with a 3,200 mAh internal battery
• Straightforward interface; Smart mode helps protect coils
• Uses common Boost B series coils for easy supply
• Includes a spare glass and a coil removal tool

Cons

• No temperature control mode
• USB Type-C cable not included in the box
• Top airflow whistle is noticeable on some setups
• Small coil tool easy to lose

Verdict

The Geek Vape Aegis Mini 5 is a back to basics, well built internal battery kit that removes unnecessary complexity while delivering reliable performance. It is best suited to vapers who want a rugged, no-nonsense device for restricted direct lung and flexible vaping styles without batteries to manage. The Z Nano 3 tank's compatibility with Boost coils is a useful move for parts availability and coil choice. Overall, it makes a solid daily driver for experienced vapers who value simplicity and durability.
