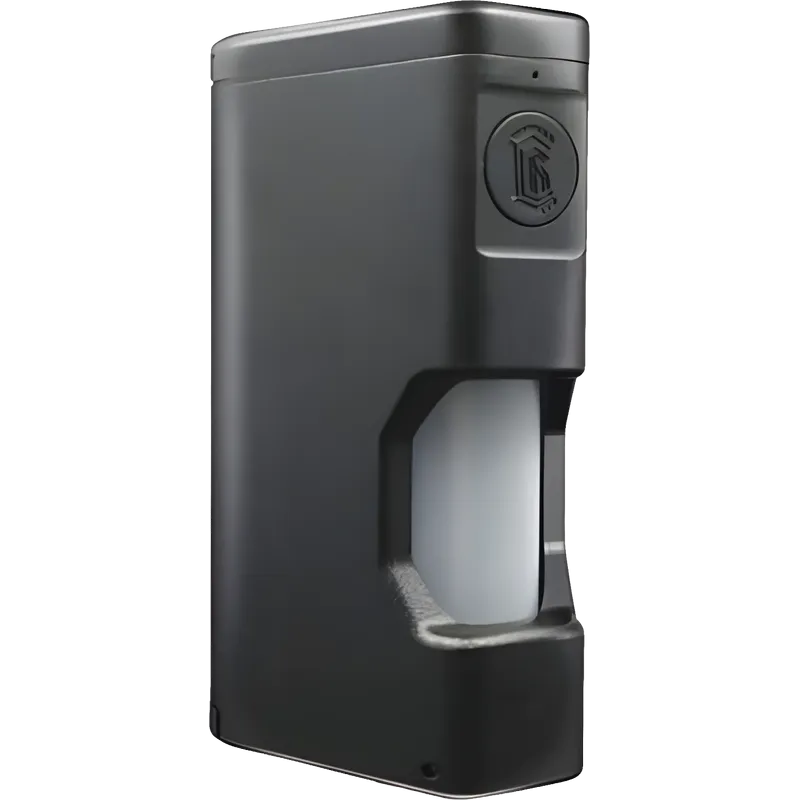

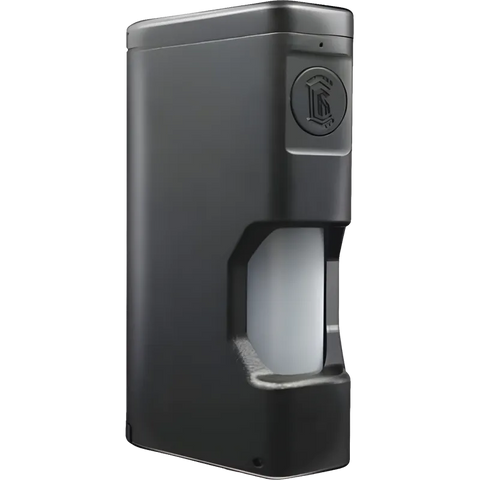

Description - Reload Squonk Mod Dual 18650
The Reload Squonk Mod from Reload Vapor USA is an enthusiast-focused dual 18650 bottom-feeding vape mod built for experienced squonk and rebuildable users. Delivering up to 136W, it combines a generous silicone squonk bottle, anodised aluminium construction and a minimalist single-button design with a proprietary electronic chipset and multiple built-in safety protections.
Unlike a conventional variable wattage mod, the Reload Squonk Mod has no adjustment buttons or display. Its power output is determined by the current state of the installed batteries, providing a simple direct-output-style vaping experience while retaining electronic protections including short-circuit, reverse polarity, under-voltage, over-voltage and overheating protection.
- Maximum output: 136W
- Battery: Dual 18650 in parallel configuration
- Squonk bottle: 9ml silicone bottle
- Output voltage: 3.3V–4.2V
- Atomiser resistance: 0.1Ω–3.0Ω
- Construction: Anodised aluminium
- Connection: Spring-loaded 510
- Controls: Single firing button
- Best suited to: Experienced squonk and rebuildable users
Features of the Reload Squonk Mod
136W Direct-Output Performance
The Reload Squonk Mod can deliver up to 136W, with power output determined by the current state of the installed batteries. Its 3.3V to 4.2V output range provides the responsive feel many experienced rebuildable users look for without adding unnecessary adjustment menus or screens.
Dual 18650 Parallel Configuration
Two removable 18650 batteries are installed in a parallel configuration, giving the Reload Squonk Mod the battery capacity required for demanding rebuildable setups. Batteries are sold separately and should always be used as a properly matched pair.

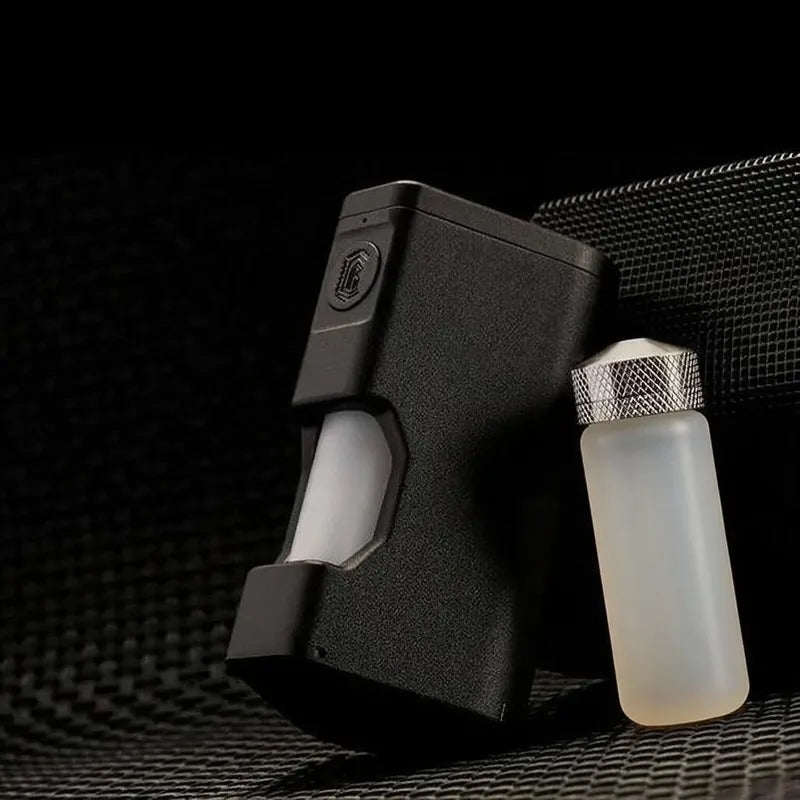

9ml Bottom-Feed Bottle
A soft silicone squonk bottle stores e-liquid inside the mod. Squeezing the bottle feeds e-liquid through the bottom-feed connection into a compatible BF RDA, giving you the flavour and responsiveness of a dripper without repeatedly dripping liquid from above.

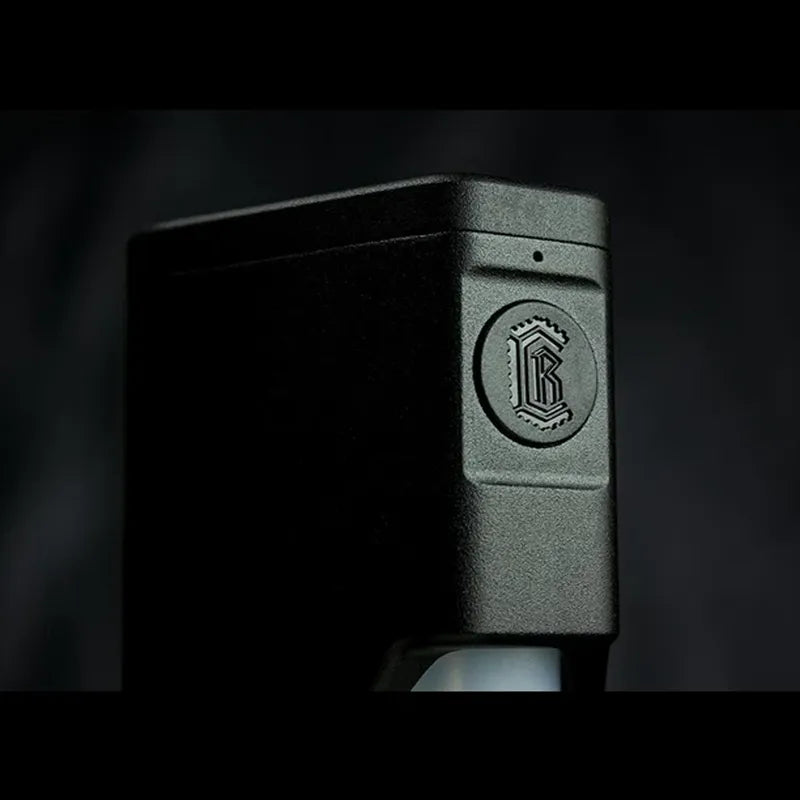

Minimal Single-Button Design
There are no adjustment buttons or complicated menu systems. The Reload Squonk Mod uses a straightforward firing button with the Reload logo engraved into the button and body, giving the device a clean and deliberately minimalist appearance.
Anodised Aluminium Construction
The body is manufactured from anodised aluminium, combining a premium finish with an ergonomic shape designed to sit comfortably in the hand while leaving the squonk bottle easy to access.
Spring-Loaded 510 Connection
A spring-loaded 510 connector provides the connection between the mod and atomiser, while gold-plated upper and lower contacts are used to provide effective electrical conductivity.
Reload Squonk Mod Performance
The Reload Squonk Mod is built around simplicity rather than extensive electronic adjustment. Its proprietary chipset supports a maximum output of 136W and an output voltage range of 3.3V to 4.2V, with the actual output changing according to the condition and charge level of your batteries.
This means there is no wattage setting to select manually. For an experienced rebuildable user, the result is a responsive and uncomplicated setup that retains considerably more electronic protection than a traditional fully mechanical squonk mod.
The supported resistance range is 0.1Ω to 3.0Ω. Your chosen resistance must also remain suitable for the batteries being used, so an understanding of battery safety and rebuildable atomisers is still important.
9ml Reload Squonk Bottle
The integrated 9ml bottom-feed silicone bottle is one of the main advantages of the Reload Squonk Mod. Rather than manually dripping e-liquid onto an RDA every few draws, a gentle squeeze sends liquid through the bottom-feed 510 and into a compatible squonk RDA.
When released, excess liquid can return through the feed system, helping keep the build deck saturated without continuously removing the RDA cap. The bottle is finished with a knurled stainless steel cap and an additional silicone squonk bottle set is supplied with the mod.
If you're unfamiliar with this type of setup, read our What Is a Squonk Mod? guide or follow our How to Set Up a Squonk RDA guide.
Reload Squonk Mod LED Indicators
The firing button's coloured LED provides operating and safety information without requiring a display screen.
| Function | LED Indicator |
|---|---|
| Power On | Press fire button 5 times – blue light for 1 second |
| Power Off | Press fire button 5 times – red light for 2 seconds |
| Over-Voltage Alert | Red light flashes 3 times |
| Short-Circuit Alert | Red light flashes 3 times |
| 10-Second Cut-Off | Red light flashes 5 times |
| Under-Voltage Alert | Red light flashes 5 times |
| Overheating Alert | Red light flashes 6 times |
Reload Squonk Mod Safety Protections
Although the Reload Squonk Mod provides a direct-output-style experience, its PCB circuit board includes several electronic safeguards:
- Reverse polarity protection
- Under-voltage protection
- Over-voltage protection
- High-resistance protection
- Overheating protection
- Short-circuit protection
- 10-second firing cut-off
These protections do not replace correct battery handling or safe coil building. We strongly recommend reading our Vape Battery Safety Guide before using removable lithium-ion cells.

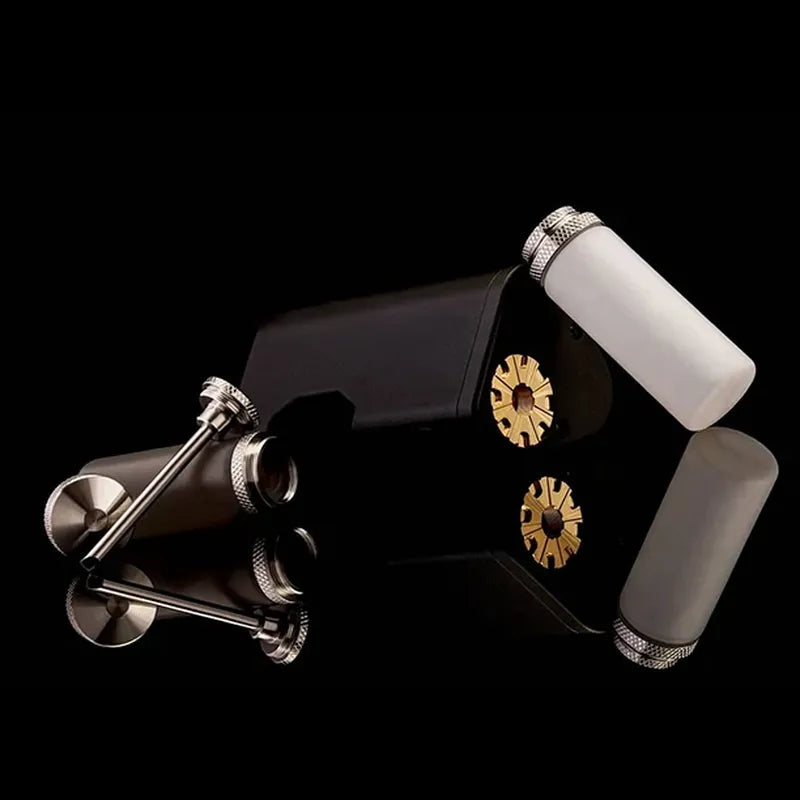

Reload Squonk Mod Battery Installation
The Reload Squonk Mod requires two matching 18650 batteries, which are not included. Access is provided through a tool-free slide-and-lock battery door.
The batteries should be inserted with the negative (-) terminals facing down, as specified by Reload Vapor. Always use two batteries of the same make, model, capacity, age and charge history. Never use cells with damaged wraps or insulators.
Compatible batteries can be found in our 18650 Vape Batteries collection.

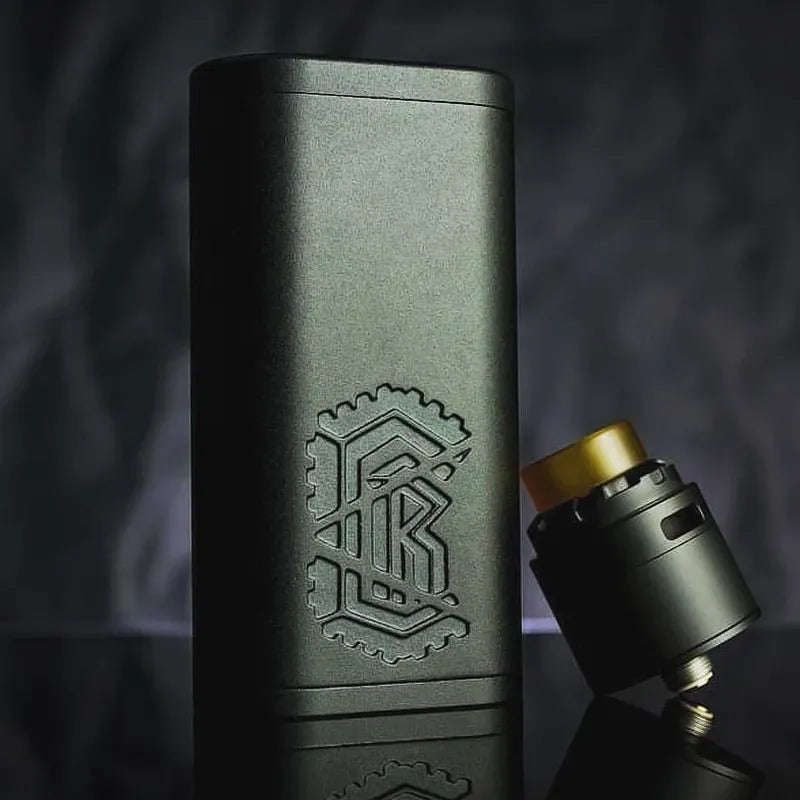

Reload Squonk Mod Compatibility
The Reload Squonk Mod uses a standard spring-loaded 510 connection and is designed primarily for use with a bottom-feed RDA fitted with a compatible BF squonk pin.
The mod supports atomiser resistances between 0.1Ω and 3.0Ω. The actual vaping style, airflow and flavour experience will depend on the RDA, coil build and e-liquid used rather than the mod itself.
A standard non-bottom-feed 510 atomiser may physically connect, but it will not be able to use the integrated squonk bottle unless the atomiser has a compatible hollow bottom-feed connection.
Who Is the Reload Squonk Mod For?
The Reload Squonk Mod is best suited to experienced vapers who already understand rebuildable atomisers, resistance and removable battery safety. Its simple controls and large bottle make it particularly appealing to RDA users who enjoy the flavour of dripping but want to carry considerably more e-liquid inside the device.
It is not recommended as a first vape kit. New users who are not familiar with coil building, resistance calculations or high-drain lithium-ion batteries should consider a more conventional regulated vape kit instead.
Reload Vapor USA
Reload Vapor USA is an enthusiast-focused vaping brand best known for rebuildable atomisers and hardware designed around performance, clean engineering and minimalist styling. The Reload Squonk Mod follows that same approach by combining a stripped-back single-button interface with a high-capacity bottom-feed system and electronic safety protections.
Reload Squonk Mod Specifications
| Specification | Reload Squonk Mod |
|---|---|
| Product Type | Electronic Squonk / Bottom-Feed Mod |
| Maximum Output | 136W |
| Output Voltage | 3.3V–4.2V |
| Resistance Range | 0.1Ω–3.0Ω |
| Battery | Dual 18650 |
| Battery Configuration | Parallel |
| Batteries Included | No |
| Squonk Bottle Capacity | XL |
| Bottle Material | Silicone |
| Bottle Cap | Knurled stainless steel |
| Body Material | Anodised aluminium |
| Connection | Spring-loaded 510 |
| Contacts | Gold plated |
| Controls | Single firing button |
What's Included with the Reload Squonk Mod?
- 1 × Reload Squonk Mod
- 1 × Extra silicone squonk bottle set
- 1 × User manual
